PRODUCT DESCRIPTION

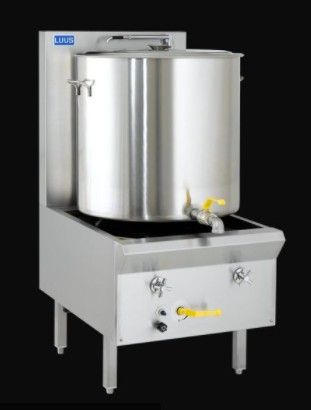

LUUS ASIAN RANGE WF 600MM TRADITIONAL STOCKPOTS 1 Hole Boiler 99mj NAT/87mj LPG

Reference:
WF-1SP
LUMAS Price:
$3,074.50 (inc GST)
Stock Level:

Add To Quote

View Compare List View Enquiry List Go to Checkout
Description

Description

Features

• Duckbill burners allow added flame control flexibility
• Water cooling system to preserve unit longevity
• Cast iron wok ring rear flued to aid combustion
• Rear laundry arm for convenient filling of stock pot
• Cast iron trivet aids airflow and burner combustion
• Full height splashback for safety and maintenance
• Suits optional 165lt stainless steel pot with release valve
• 15 month ‘Platinum Warranty’
• Easy to clean and service

Traditional Stockpot
• 99/87mj 18 jet duckbill burner with pilot & FFD
• Deck water cooling
• Quarter turn water control lever for rear laundry arm
• Front gutter design for easier cleaning
• Supplied with cast-iron trivet
• 25mm insulated front heat shield panel
• Zinc-aluminium Alloy burner handles
Overall Construction
• Welded steel frame construction
• Heavy duty, full skirt, enamelled cast-iron rings
• Double flanged watertight gasket seal
• Rear flue system to aid combustion
• 1.2mm 304 stainless steel deck
• Splashback 1.2 mm stainless steel
• Front cover and hob 1.2mm stainless steel
• Side panels & undertrays 0.7mm stainless steel
• 38mm stainless steel tube legs with adjustable feet
Dimensions
• 600mm x 850mm x 1300mm H
• Working height 630mm
• Weight 94kg
• Packed dimensions 650mm x 900mm x 1470mm H
• Packed weight 114kg
Connections
• Gas 3/4” BSP male
• Gas 100mm from left, 50mm from rear, 300mm from floor
(regulator connected inside front cover)
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 100mm from right, 50 mm from rear, 300mm floor
• Drain 2” BSP male
• Drain 100mm from right, 130mm from front, 450mm floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Replace Duckbill burners with Chimney or Dual Ring
• 165lt stainless steel pot with release valve
• Joining caps & strips
• RH and LH side shields
• Rear castors
• Extended warranty
