PRODUCT DESCRIPTION

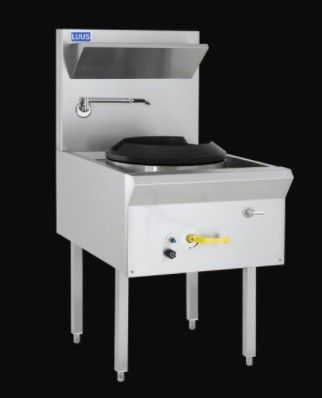

LUUS Asian Series 1 Chimney Burne 14'' Waterless Wok
Description
Features
? Chimney burners ideal for high heat/fast stir frying
? Uses up to 90% less water than Traditional Woks
? Air gap design eliminates need for water cooling
? Laundry arm controlled by quarter turn lever
? Folding laundry arm for flexible usage options
? SS shield ring prevents water from entering air gap
? Modular design to suit multiple WL wok units
? Optional Duckbill burners ideal for medium heat cooking
? Optional Dual Ring burners ideal for low/simmer cooking
? 15 month ‘Platinum Warranty’
? Easy to clean and service
Waterless Wok
? 110/120 mj 24 jet chimney burners with pilot & FFD
? Air gap cooling system with incorporated heat shield
? Quarter turn water control lever
? Folding rear laundry arm with front panel controls
? Front gutter design for easier cleaning
? Internal front heat shield panel
? Supplied with waste strainer and SS air gap shield rings
? Zinc-aluminium Alloy burner handles
Overall Construction
? Welded steel frame construction
? Heavy duty, full skirt, enamelled cast-iron rings
? 1.2mm 304 stainless steel deck
? 0.9mm 304 stainless steel condiment shelf
? Splashback 1.2 mm stainless steel
? Front cover and hob 1.2mm stainless steel
? Side panels & undertrays 0.7mm stainless steel
? 38mm stainless steel tube legs with adjustable feet
Dimensions
? 600mm x 850mm x 1300mm H
? Working height 845mm
? Weight 94kg
? Packed dimensions 650mm x 900mm x 1470mm H
? Packed weight 114kg
Connections
? Gas 3/4” BSP male
? Gas 500mm from right, 50mm from rear, 500mm from floor
(regulator connected inside front cover)
? Supplied with gas regulator (specify Nat or LP on order)
? Water inlet 1/2” copper tube
? Water 100mm from right, 50 mm from rear, 400mm floor
? Drain 2” BSP male
? Drain 100mm from right, 130mm from front, 650mm floor
Cleaning & Servicing
? Easy access to all parts & components from front
Options/Accessories
? Knee lever timer tap
? Replace Chimney burners with Duckbill or Dual Ring
? 300mm and 600mm wide clip of shelves
? Joining caps & strips
? RH and LH side shields
? Rear castors
? Extended war
