PRODUCT DESCRIPTION

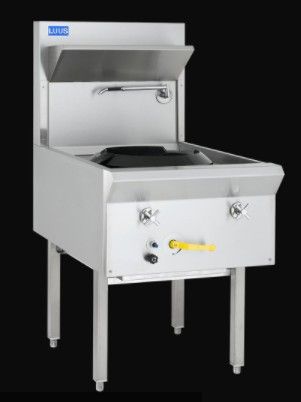

LUUS ASIAN RANGE WF 600MM TRADITIONAL WOKS 1 Hole Traditional Wok 110mj NAT/120mj LPG

Reference:
WF-1C
LUMAS Price:
$2,882.00 (inc GST)
Stock Level:

Add To Quote

View Compare List View Enquiry List Go to Checkout
Description

Description

Features

• Chimney burners ideal for high heat/fast stir frying
• Water cooling system to preserve unit longevity
• Cast iron wok ring rear flued to aid combustion
• Laundry arm controlled by quarter turn lever
• Folding laundry arm for flexible usage options
• Modular design to suit multiple WF wok units
• Optional Duckbill burners ideal for medium heat cooking
• Optional Dual Ring burners ideal for low/simmer cooking
• 15 month ‘Platinum Warranty’
• Easy to clean and service

Traditional Wok
• 110/120 mj 24 jet chimney burners with pilot & FFD
• Deck water cooling via rear condiment shelf
• Quarter turn water control lever
• Folding rear laundry arm with front panel controls
• Front gutter design for easier cleaning
• 25mm insulated front heat shield panel
• Zinc-aluminium Alloy burner handles
Overall Construction
• Welded steel frame construction
• Heavy duty, full skirt, enamelled cast-iron rings
• Double flanged watertight gasket seal
• Rear flue system to aid combustion
• 1.2mm 304 stainless steel deck
• 0.9mm 304 stainless steel condiment shelf
• Splashback 1.2 mm stainless steel
• Front cover and hob 1.2mm stainless steel
• Side panels & undertrays 0.7mm stainless steel
• 38mm stainless steel tube legs with adjustable feet
Dimensions
• 600mm x 850mm x 1300mm H
• Working height 815mm
• Weight 94kg
• Packed dimensions 650mm x 900mm x 1470mm H
• Packed weight 114kg
Connections
• Gas 3/4” BSP male
• Gas 500mm from right, 50mm from rear, 500mm from floor
(regulator connected inside front cover)
• Supplied with gas regulator (specify Nat or LP on order)
• Water inlet 1/2” copper tube
• Water 100mm from right, 50 mm from rear, 400mm floor
• Drain 2” BSP male
• Drain 100mm from right, 130mm from front, 650mm floor
Cleaning & Servicing
• Easy access to all parts & components from front
Options/Accessories
• Replace Chimney burners with Duckbill or Dual Ring
• 300mm and 600mm wide clip of shelves
• Joining caps & strips
• RH and LH side shields
• Rear castors
• Extended warranty
