PRODUCT DESCRIPTION

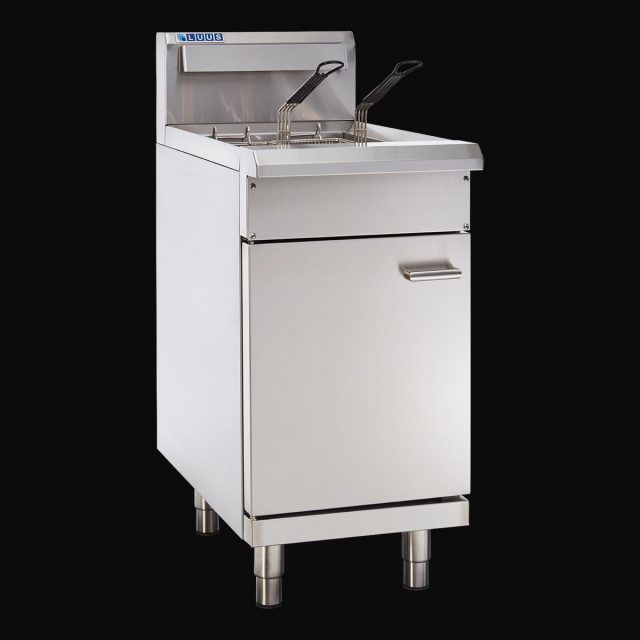

LUUS Professional FV 450MM 2 Basket V-Pan Fryer 100mj NAT/100mj LPG
Description
FEATURES
• Easy to clean V-pan design with cool zone
• High performance burners and recovery rates
• Includes pilot, FFD, piezo and high temp cutout
• 30kg/hr production rate
• 20 litre oil capacity
• Cabinet design with internal fryer controls
• Supplied with 2 fryer baskets
• Modular Professional series design
• 15 month ‘Platinum Warranty’
• Easy control/burner access for servicing
V-Pan Fryer
• 100mj jet burner with pilot, FFD and piezo ignition
• Fenwal thermostat valve with +/- 1° C tolerance
• Thermostat temperature range 150 - 200° C
• High temperature cut-out safety mechanism
• 304 grade 1.5mm stainless steel tank
• 20 litre tank capacity
• Includes 2 stainless steel fryer baskets
• 0.9mm stainless steel perforated fish/base plate
• Tank drainage valve at bottom front of unit
Overall Construction
• Heavy duty construction
• Constructed 0.9mm 304 stainless steel door
• High density Fiberfrax Durablanket insulation around tank
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Includes stainless steel legs with 55mm adjustable range
Dimensions
• 450mm x 800mm x 1100mm H
• Working height 900mm
• Weight 72kg
• Packed dimensions 640mm x 860mm x 1260mm H
• Packed weight 92kg
Connections
• Gas 3/4” BSP male
• Gas 225mm from right, 50mm from rear, 210mm from floor
• In-built gas regulator (specify Nat or LP on order)
• Drain 1 1/4” BSP male
• Drain 225mm from left, 70mm from front, 385mm floor
Cleaning & Servicing
• Easy access to all parts & components from front
• V-pan easy-to-clean design
• Rear basket support bar
• Removable baskets and inserts
Options/Accessories
• Additional fryer baskets
• Joining caps
• RH and LH side shields
• Rear castors
• Extended warranty
